Granulation equipment

Classification

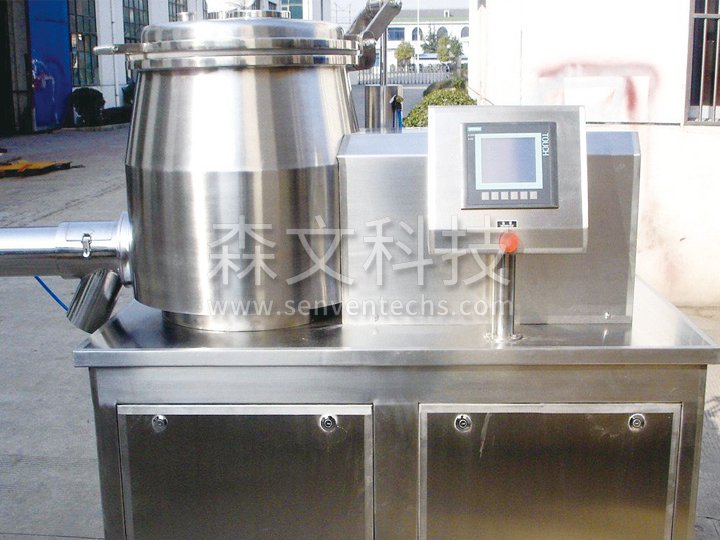

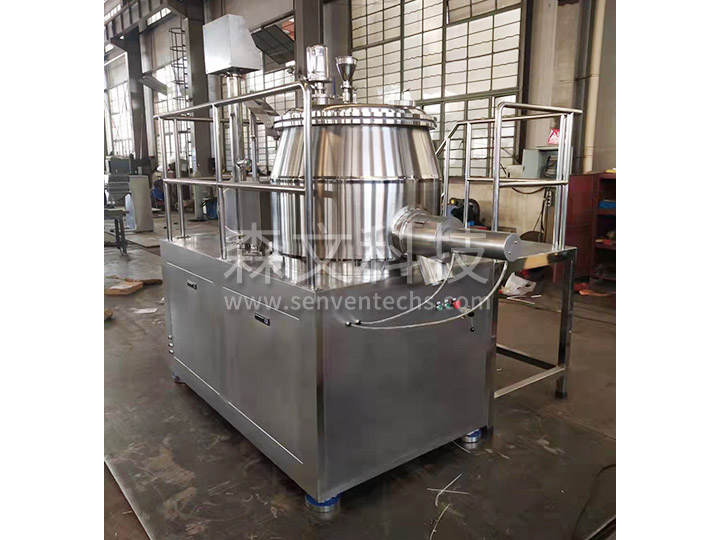

GHL series high-speed mixing granulator

Category: Granulation equipment

Introduction: Working principleThe powder material and adhesive are thoroughly mixed into a moist soft material in a cylindrical container from the bottom mixed slurry, and then cut into uniform wet particles by a high-speed grinding paddle on the side.Performance …

+86-15861151117
Inquire


Working principle

The powder material and adhesive are thoroughly mixed into a moist soft material in a cylindrical container from the bottom mixed slurry, and then cut into uniform wet particles by a high-speed grinding paddle on the side.

Performance characteristics

This machine adopts a horizontal cylindrical structure with a reasonable structure.

The inflatable sealed drive shaft can be switched to water during cleaning.

Fluidized granulation, with nearly spherical shape and good fluidity.

Compared to traditional processes, it reduces adhesive by 25% and shortens drying time.

Each batch only needs to be dry mixed for 2 minutes and pelletized for 1-4 minutes, which improves the efficiency by 4-5 times compared to traditional processes.

Completed in the same closed container, dry mixing wet mixing granulation, process shortened.

The entire operation has strict safety protection measures.

It can be made into a jacket type according to user requirements.

Technical specifications

model A B C×D E F
50 320 950 1250×800 970 1650
150 420 1000 1350×800 1050 1750
200 500 1100 1650×940 1450 2050
250 500 1160 1650×940 1400 2260
300 550 1200 1700×1000 1400 2310
400 670 1300 1860×1100 1550 2410
600 750 1500 2000×1230 1750 2610


name model
50 150 200 250 300 400 600
volume L 50 150 200 250 300 400 600
production kg/batch 15 50 80 100 130 200 280
mixing speed r.p.m 200/400 180/270 180/270 180/270 140/220 106/155 80/120
Mixed power kw 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30
Cutting speed r.p.m 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000
cut power kw 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11
Compressed air consumption m3/min 0.6 0.9 0.9 0.9 1.1 1.5 1.8
weight kg 500 800 1000 1300 1800 2200 2600
