Category: Granulation equipment

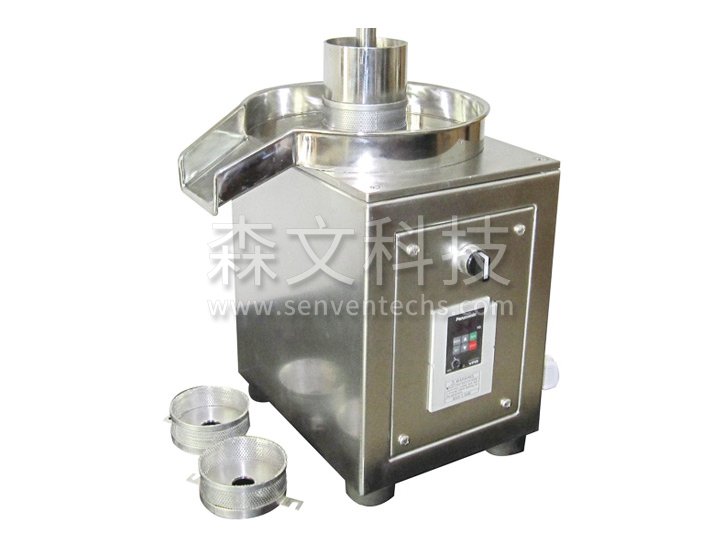

Introduction: Application scopeThis machine is used in industries such as pharmaceuticals, food, granules, chemicals, solid drinks, etc., to make the required particles from stirred materials, especially suitable for materials with high viscosity.Performance charac…
+86-15861151117
| Grinding knife size(mm) | 250 | 300B | 300D |
| particle diameter（mm） |
Φ2-2.2 （Can be customized according to user needs） |
Φ1.2-3 （Can be customized according to user needs） |
0.5-6 （Can be customized according to user needs） |
| Overall dimensions（mm） | 700×540×1300 | 880×640×1300 | 1300×800×1200 |
| power（kw） | 3 | 4 | 7.5-6 |
| weight（kg） | 350 | 400 | 780 |
|
production capacity（kg/h） |
100-200 | 140-400 | 300-600 |
Note: Due to material differences, the output in the table is for reference only
