EYH series two-dimensional motion mixer

Category: Mixing equipment

Introduction: Working principleThe two-dimensional mixing machine mainly consists of three parts: a rotating drum, a swinging frame, and a frame. The rotary drum is installed on a swing frame, supported by four rollers and axially positioned by two gear wheels. Amo…

+86-15861151117
Inquire


Working principle

The two-dimensional mixing machine mainly consists of three parts: a rotating drum, a swinging frame, and a frame. The rotary drum is installed on a swing frame, supported by four rollers and axially positioned by two gear wheels. Among the four supporting rollers, two transmission wheels are driven by a rotating power system to rotate the rotary drum. The swing frame is driven by a set of crank swing rod mechanisms, which are mounted on the frame and supported by bearing components.

Performance characteristics

The rotary drum of the EYH two-dimensional mixer can perform two movements simultaneously, one is the rotation of the rotary drum, and the other is the oscillation of the rotary drum with the swing frame. The mixed material rotates, flips, and mixes with the rotating drum, while also undergoing left and right back and forth mixing movements with the swinging of the drum. Under the combined action of these two movements, the material is fully mixed in a short period of time. The EYH two-dimensional mixer is suitable for mixing all powder and granular materials.

Structural diagram

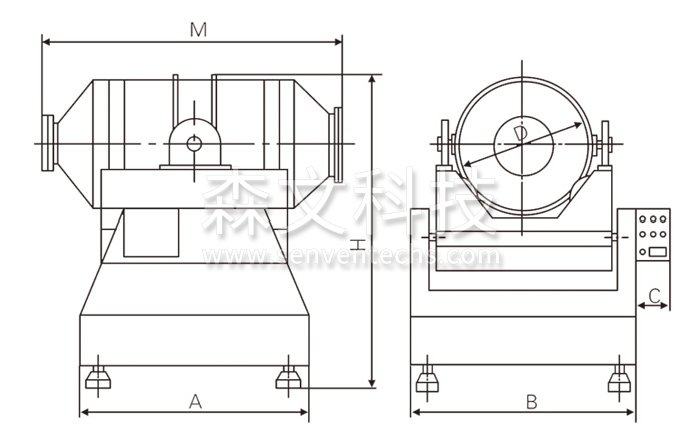

二维运动混合机结构示意图

Technical specifications


Specification and model volume(L) loading coefficient Loading weight
(kg)
External dimensions(mm) power(kw)
A B C D M H turn swing
EYH100 100 0.5 40 860 900 200 400 1000 1500 1.1 0.75
EYH300 300 0.5 75 1000 1100 200 580 1400 1650 1.1 0.75
EYH600 600 0.5 150 1300 1250 240 720 1800 1850 1.5 1.1
EYH800 800 0.5 200 1400 1350 240 810 1970 2100 1.5 1.1
EYH1000 1000 0.5 350 1500 1390 240 850 2040 2180 2.2 1.5
EYH1500 1500 0.5 550 1800 1550 240 980 2340 2280 3 1.5
EYH2000 2000 0.5 750 2000 1670 240 1100 2540 2440 3 2.2
EYH2500 2500 0.5 950 2200 1850 240 1160 2760 2600 4 2.2
EYH3000 3000 0.5 1100 2400 1910 280 1220 2960 2640 5 4
EYH5000 5000 0.5 1800 2700 2290 300 1440 3530 3000 7.5 5.5
EYH10000 10000 0.5 3000 3200 2700 360 1800 4240 4000 15 11
EYH12000 12000 0.5 4000 3400 2800 360 1910 4860 4200 15 11
EYH15000 15000 0.5 5000 3500 3000 360 2100 5000 4400 18.5 15

Note: The specific gravity of material stacking is calculated as 0.6g/cm3. If it exceeds the limit, please indicate it when ordering.
