Category: Mixing equipment

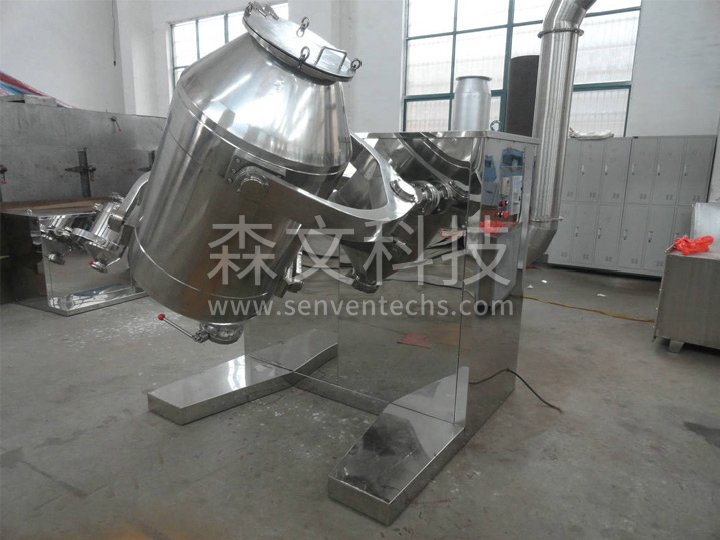

Introduction: Performance characteristicsUnder the driving force of the active shaft, the loaded cylinder undergoes cyclic compound movements such as translation, rotation, and rolling, promoting the material to move in three directions along the cylinder, thereby …
model | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1200 | SYH-1500 | SYH-2000 |
Barrel volume(L) | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
Upper limit of loading capacity(L) | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 720 | 900 | 1080 | 1350 | 1800 |
Upper limit of loading weight(kg) | 1.5-2.7 | 4-8.1 | 15-27 | 30-54 | 50-108 | 100-216 | 150-324 | 200-432 | 250-540 | 300-648 | 400-810 | 500-1080 |
Spindle speed(r/min) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-13 | 0-10 | 0-10 | 0-9 | 0-9 | 0-8 |
power(kw) | 0.25 | 0.37 | 1.1 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
size(mm) |
600×1000 ×1000 |
800 ×1200 ×1000 |
1150 ×1400 ×1000 |
1250 ×1800 ×1550 |
1450 ×2000 ×1550 |
1650 ×2200 ×1550 |
1850 ×2500 ×1750 |
2100 ×2650 ×2000 |
2150 ×2800 ×2100 |
2000 ×3000 ×2260 |
2300 ×3200 ×2500 |
2500 ×3500 ×2800 |
weight(kg) | 100 | 200 | 300 | 800 | 1200 | 1200 | 1500 | 1700 | 1800 | 2000 | 2400 | 3000 |
Note: The specific gravity of material stacking is calculated as 0.6g/cm3. If it exceeds the limit, please indicate it when ordering.
