Mixing equipment

Classification

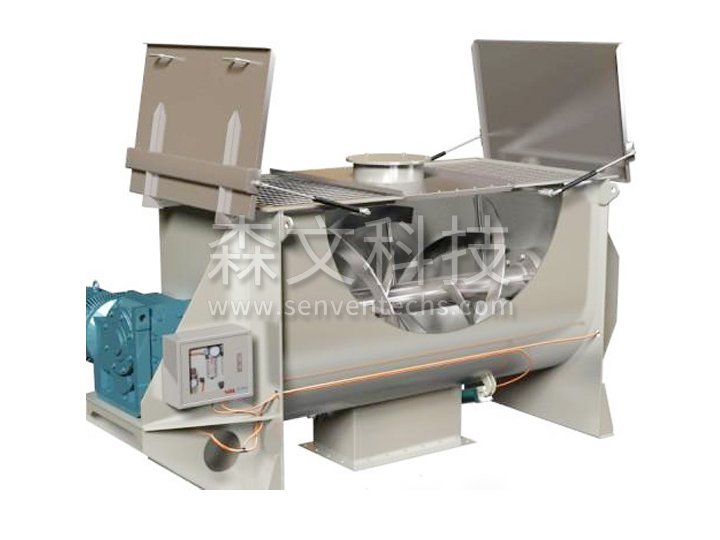

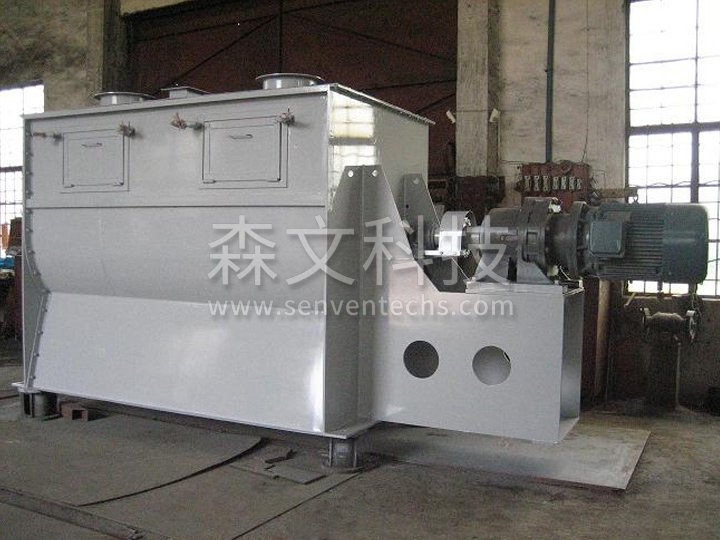

WLDH series horizontal screw belt mixer

Category: Mixing equipment

Introduction: Working principleThis model is composed of a container, spiral stirring blades, and transmission components: spiral blades are generally made into two or three layers, with the outer spiral collecting materials from both sides to the center, and the i…

+86-15861151117
Inquire


Working principle

This model is composed of a container, spiral stirring blades, and transmission components: spiral blades are generally made into two or three layers, with the outer spiral collecting materials from both sides to the center, and the inner spiral conveying materials from both sides of the center, forming convective mixing.

Performance characteristics

High loading coefficient and small equipment footprint:

When mixing sticky or cohesive materials, cleaning is difficult.

Adapt to materials

The spiral belt mixer is generally used for mixing sticky or cohesive powder particles, as well as adding liquid and paste materials to the powder particles. At the same time, due to the difficulty in cleaning sticky materials, it is suitable for mixing in situations with high production and infrequent variety changes.

Technical specifications

Model specifications WLDH-0.1 WLDH-0.3 WLDH-0.5 WLDH-1 WLDH-1.5 WLDH-2 WLDH-3 WLDH-4 WLDH-6 WLDH-8 WLDH-10
Disposable mixing(kg) 30-50 100-150 200-300 400-600 600-900 800-1200 1200-1800 1600-2400 2400-3600 3200-4800 4000-6000
power(kg) 1.5-4 3-3.5 4-11 7.5-15 11-18.5 15-22 18.5-30 22-37 37-55 37-55 37-55
Equipment weight(kg) 300 500 900 1400 1900 2500 3100 3600 5300 6800 7800

Note: The above products are made of carbon steel C and stainless steel P.
