Screening equipment

Classification

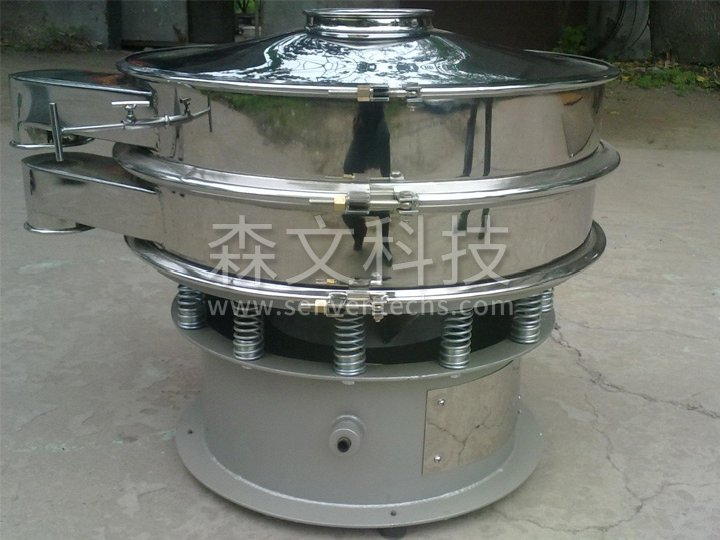

ZS series circular oscillating screen

Category: Screening equipment

Introduction: OverviewThis machine is composed of a hopper, an oscillation chamber, a coupling, and a motor. The oscillation chamber consists of eccentric wheels, rubber software, main shafts, bearings, etc. The adjustable eccentric weight is driven by a motor to r…

+86-15861151117
Inquire


Overview

This machine is composed of a hopper, an oscillation chamber, a coupling, and a motor. The oscillation chamber consists of eccentric wheels, rubber software, main shafts, bearings, etc. The adjustable eccentric weight is driven by a motor to reach the centerline of the main shaft, generating centrifugal force in an unbalanced state, causing changes in material strength and forming track vortices inside the screen. The amplitude of the heavy hammer adjuster can be adjusted according to different materials and screens. The entire machine has a compact structure, small size, no dust, low noise, high quality, low energy consumption, and convenient mobile maintenance.

Technical specifications

model ZS-350 ZS-515 ZS-650 ZS-800 ZS-1000 ZS-1500
production capacity(kg/h) 40-500 60-600 80-800 150-1200 300-2000 350-2800
meshes 12-1200 12-200 12-200 12-200 5-325 5-325
power(kw) 0.55 0.55 0.55 0.75 1.5 2.2
Spindle speed(rpm) 1380 1370 1370 1500 1500 1500
Overall dimensions(mm) 540×540×1060 710×710×1290 880×880×1350 1000×1000×1000 1100×1100×1200 1600×1600×1200
net weight(kg) 100 180 250 300 350 400
